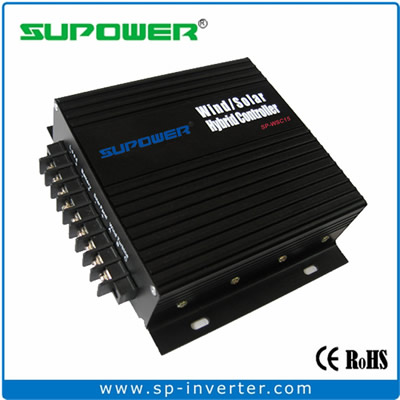

SUPOWER 15A Wind Solar Hybrid Light Charge Controller

SUPOWER Wind/Solar Hybrid light Charge controller with advanced

control circuit. The new generation SUPOWER wind/solar hybrid intelligent light controller is different from other controllers, which is specially designed for wind/solar hybrid

street light in a group of wind power,solar power, this controller also has light control+time control exact timing control function which

can extactly control loads turn on/off time (Optional).

Functions:

1. Microprocessor intelligent control, exactly control.

2. Anti-surge protection,short-circuit protection and reversed polarity protection.

3. Overload protection,Overcharge protection,over discharge protection.

4. Turn on light at dask autotmatically and turn off light at dawn automatically according to light intensity.

5. Temperature compensation function.

6. Recognize the wind turbine charging voltage and charging current exactly with safe and complete multiple wind turbine brake protection system.

Technical information:

MODEL	SP-WSC 10A	SP-WSC 15A
System voltage	12V ； 24V ； 12V/24V Automatic voltage recognition
Max charge current	10A	15A
Max discharge current	10A	15A
Rated power for wind turbine	100W ~ 400W（12V/24V）
Charge off voltage HVD	14.4V / 28.8V
Low Voltage Directive LVD	10.8V / 21.6V
Low Voltage Restore LVR	11.8V / 23.6V
Charge loop drop	＜300mV
Discharge loop drop	＜50mV
Overload protection	10.5A	15.5A
Short-circuit protection	15A
Light operate	light control on + light control off
Light time control	Light control on/off + time control on/off
Time control classification	0.5 hours started, half an hour of one grade, up to 10 hours
Output route	single bulb
Ambient temperature	-25℃——+55℃
Safe degree	IP55
Quiescent dissipation	24mA
