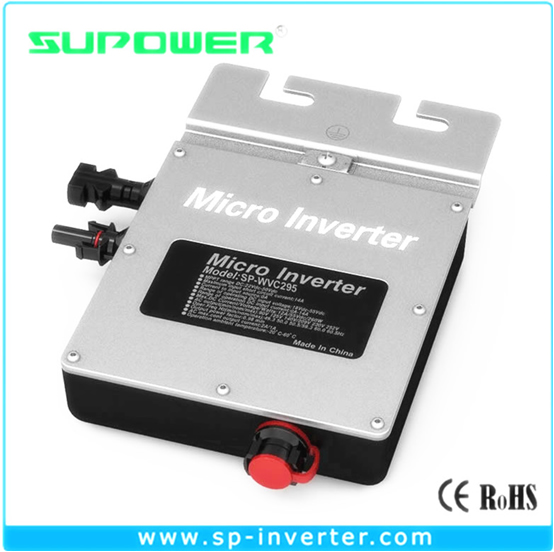

260W Waterproof IP67 Solar Micro Grid Tie Power Inverter

Product description

1200W Waterproof IP65 Solar Micro Grid Tie Power Inverter

SP-WV230 260W Series Using IP67 waterproof streamline design, Can effectively prevent rainwater on the surface erosion, Built-in high-performance Maximum Power Point Tracking(MPPT)Function,Better able to track changes in the solar luminosity and control different output power, Effectively capture and collect sunlight. AC electric power transmission using the reverse transmission technology, Is one of our patented technology, The inverter output power can provide load priority use, Extra electricity to the grid, Efficient use of the inverter to the power emitted, Electricity transmission rate of up to 99%.

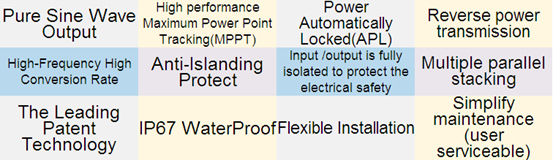

Feature

260W Waterproof IP67 Solar Micro Grid Tie Power Inverter

High Efficiency

Intelligent MPPT & Weak Light Tracking Algorithm

Met the Grid Product Certification Standard

Parameter

Input Data			KD-WV230 260W
Recommended input power			200-300Watt
Recommend the use of PV modules			300W/Vmp>34V/Voc<50V
Maximum input DC voltage			50V
Peak power tracking voltage			25-40V
Operating Voltage Range			17-50V
Min / Max start voltage			22-50V
Maximum DC short current			15A
Maximum Input Current			9.8A
Output Data	@120VAC		@230VAC
Peak power output	260Watt		260Watt
Rated output power	250Watt		250Watt
Rated output current	2.08A		0.92A
Rated voltage range	80-160VAC		180-260VAC
Rated frequency range	57-62.5Hz		47-52.5Hz
Power factor	>96%		>96%
Maximum units per branch circuit	15PCS(Single-phase)		30PCS(Single-phase)
Output Efficiency	@120VAC		@230VAC
Static MPPT efficiency	99.50%		99.50%
Maximum output efficiency	92.30%		94.60%
The average efficiency	91.20%		93.10%
Night time power consumption	<50mW Max		<70mW Max
THDI	<5%		<5%
Exterior
Ambient temperature		-40°C to +60°C
Operating temperature range (inverter inside)		-40°C to +82°C
Dimensions (WxHxD)		195mm130mm32mm
Weight		0.65kg
Waterproof Rating		IP67
Cooling		Self-cooling
Feature
Power transmission mode		Reverse transfer, load priority
Electromagnetic compatibility		EN50081.part1EN50082.part1
Grid disturbance		EN61000-3-2 Safety EN62109
Grid detection		DIN VDE 1026 UL1741
Certificate		CEC,CE National patent technology
