SUPOWER with bypass pure sine wave inverter series widely used in the construction of mobile base stations. Power inverter Bypass in China, we provide 5,000 construction for mobile operators annually. With bypass inverter very flexible and can automatically switch between mains and battery. Very short switching time<9MS.
1.The inverter support Optional Grid Default Grid priority or inverter priority
2.The inverter and Grid Transfer time <9MS
3.High frequency combinatorial circuit technology
4.Performance related fan control
5.Accurate and stable sine through analogue technique
6.High efficiency <94%
7.Protection against reverse polarity and short-circuit
8.Auto-restart-function
9.Switch off at too high temperature
10.Deep discharge protection for battery
11.Under and upper voltage control
12.Overload protection
13.Soft-start function

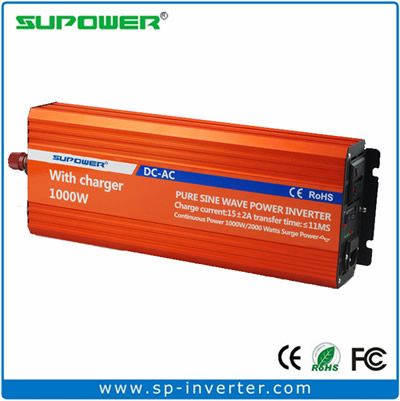

SUPOWER 1000w bypass inverter, 1000w power inverter,1000w car inverter surge power is 2000w. And 1000w power inverter,1000w car inverter has high efficiency.1000 watt power inverters the highest efficiency can get 94%.
Parameter:
|
Model
|
SPP1000-12-1S
|
SPP1000-24-1S
|
SPP1000-48-1S
|
SPP1000-12-2S
|
SPP1000-24-2S
|
SPP1000-48-2S
|
|
Continuous Power
|
1000W
|
|
Surge Power
|
2000W
|
|
Frequency
|
50HZ±0.5HZ or 60HZ±0.5HZ
|
|
Wave Form
|
Pure Sine Wave
|
|
AC Regulation
|
THD＜3%( Linear Load)
|
|
USB Outlet
|
5V 500MA
|
|
Output Efficiency
|
Highest 94%
|
|
DC Voltage
|
DC12V
|
DC24V
|
DC48V
|
DC12V
|
DC24V
|
DC48V
|
|
AC Voltage
|
1000VAC or 110VAC or 120VAC ±5%
|
220VAC or 230VAC or 240VAC ±5%
|
|
No Load Current Draw
|
0.8A
|
0.4A
|
0.2A
|
0.8A
|
0.4A
|
0.2A
|
|
DC Voltage Range
|
10-15.5V
|
20-31V
|
40-61V
|
10-15.5V
|
20-31V
|
40-61V
|
|
Low Voltage Alarm
|
10.5±0.5V
|
21±0.5V
|
42±1V
|
10.5±0.5V
|
21±0.5V
|
42±1V
|
|
Low Voltage Shut Down
|
10±0.5V
|
20±0.5V
|
40±1V
|
10±0.5V
|
20±0.5V
|
40±1V
|
|
Over Voltage Shut Down
|
15.5±0.5V
|
31±0.5V
|
61±1V
|
15.5±0.5V
|
31±0.5V
|
61±1V
|
|
Low Voltage Recovery
|
13±0.5V
|
24±0.5V
|
48±1V
|
13±0.5V
|
24±0.5V
|
48±1V
|
|
Over Voltage Recovery
|
14.8V±0.5V
|
29V±0.5V
|
59V±1V
|
14.8V±0.5V
|
29V±0.5V
|
59V±1V
|
|
Transfer Time
|
≤9MS
|
≤9MS
|
≤9MS
|
≤9MS
|
≤9MS
|
≤9MS
|
|
Grid Input Draw
|
100VAC or 110VAC or 120VAC ±10%
|
220VAC or 230VAC or 240VAC ±10%
|
|
Priority
|
Optional/Default Grid Priority.
|
|
Protection
|
Low Voltage/Over Voltage
|
LED Alarm and Automatic Recovery.
|
|
Overload
|
LED Alarm and Automatic Recovery.
|
|
Over Temperature
|
LED Alarm and Automatic Recovery.
|
|
Short Circuit
|
LED Alarm and Automatic Recovery.
|
|
Input Oppose
|
Diode or MOS FET
|
|
Working Temperature
|
-10°- +50°
|
Qty/Carton
|
1PC
|
|
Storage Temperature
|
-30°- +70°
|
Carton Size
|
465*208*140(mm)
|
|
Product Size
|
395*145*69(mm)
|
Carton Weight
|
3.8(kg)
|
|
Package Size
|
465*208*140(mm)
|
Warranty
|
2 Years
|
|
N.W/G.W
|
3.4/3.8(kg)
|
Configuration
|
Standard
|
|
Start
|
Bipolar soft-start
|
Cooling Way
|
Intelligent Cooling Fan
|
|
